the single powerful 20V battery fits all.
All the tools use the same lithium-ion technology rechargeable battery, which is easier in your pocket, and means you won’t have to find storage
space for lots of chargers.You’ll only invest in one battery and one charger.
 |

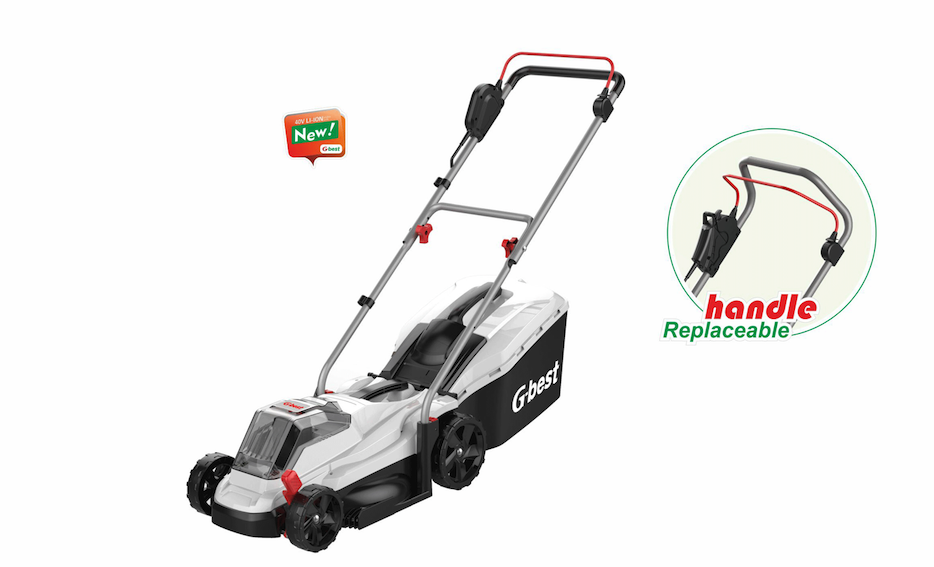

LMB2033 |
| Power Source: | Lithium-ion |
| Battery Voltage: | 20V |
| No Load Speed: | 3000rpm |
| Cutting Diameter: | 33cm |
| Adjustable Height: | 25-65mm (5 central) |
| Gross Box: | 35L |
| Color Box: | 690 x 395 x 365/pc |
| 20'GP/40'GP/40'HC: | 288/582/679 pcs |
|
LMB2036 | LMB4040 |
| Power Source: | Lithium-ion | Lithium-ion |
| Battery Voltage: | 20V | 20V |
| Cutting Diameter: | 250mm | 250mm |
| Line Diameter: | 1.65mm | 1.65mm |
| Cutting System: | Auto single-Line Feed | Auto single-Line Feed |
| No Load Speed: | 8500rpm | 8500rpm |
| Extension Tube: | 0-200mm | 0-200mm |
| Net Weight: | 2.22kg | 2.22kg |
| Gross Weight: | 3.65kg | 3.65kg |
| Color Box: | 970x235x105 mm | 1050x240x110 mm |
| Shipping Box: | 990x490x230 mm/4pcs | 1070x500x240 mm/4pcs |
| 20'GP/40'GP/40'HC: | 872/1920/2112 pcs | 856/1752/1960 pcs |
|

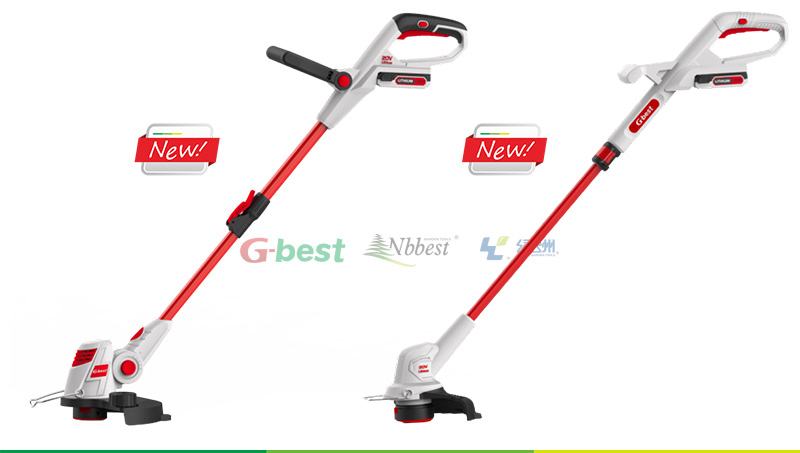

GTB20 | GTC20 | GTB20+Mower Deck |
| Power Source: | Lithium-ion | Lithium-ion | Lithium-ion |
| Battery Voltage: | 20V | 20V | 20V |
| Cutting Diameter: | 250mm | 250mm | 250mm |
| Line Diameter: | 1.65mm | 1.65mm | 1.65mm |
| Cutting System: | Auto single-Line Feed | Auto single-Line Feed | Auto single-Line Feed |
| No Load Speed: | 8500rpm | 8500rpm | 8500rpm |
| Extension Tube: | 0-200mm | 0-200mm | 0-200mm |
| Net Weight: | 2.22kg | 2.22kg | 2.22kg |
| Gross Weight: | 3.65kg | 3.65kg | |
| Color Box: | 970x235x105 mm | 1050x240x110 mm | 1050x240x110 mm |
| Shipping Box: | 990x490x230 mm/4pcs | 1070x500x240 mm/4pcs | 1070x500x240 mm/4pcs |
| 20'GP/40'GP/40'HC: | 872/1920/2112 pcs | 856/1752/1960 pcs | 856/1752/1960 pcs |
|

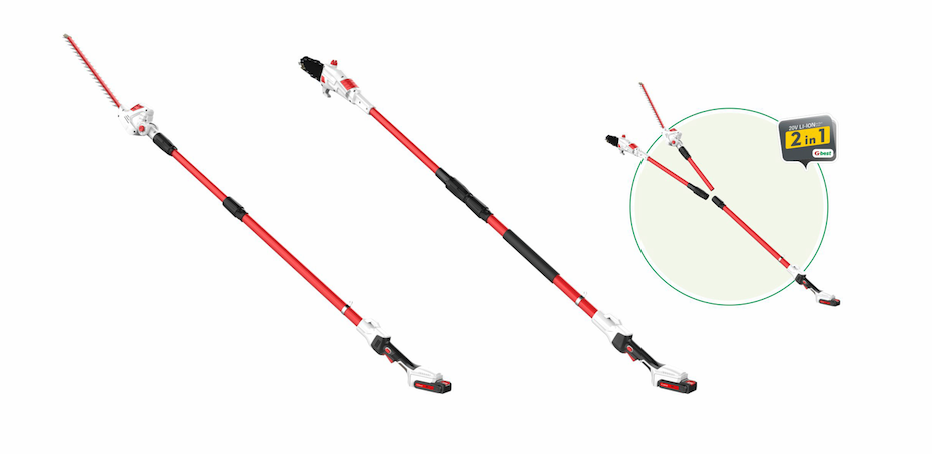

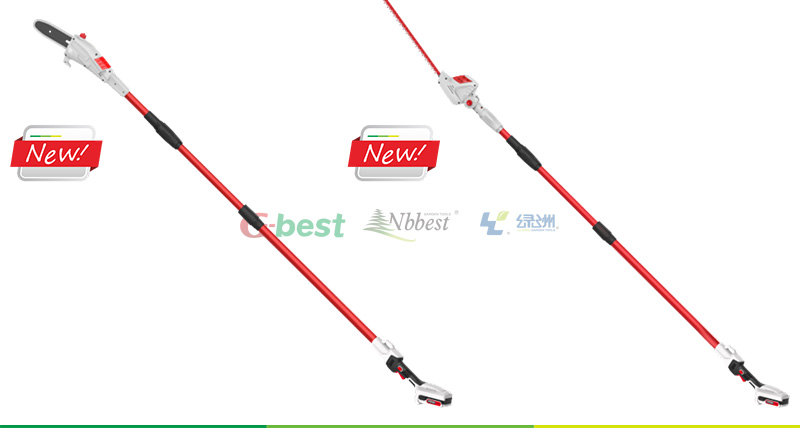

PSB20 | |
PHB20 |
| Power Source: | Lithium-ion | Power Source: | Lithium-ion |
| Battery Voltage: | 20V | Battery Voltage: | 20V |
| No Load Speed: | 3300rpm | No Load Speed: | 1200rpm |
| Chain Sprocket Speed: | 5m/s | Chain Sprocket Speed: | - |
| Oil Tank Capacity: | 75ml | Oil Tank Capacity: | - |
| Cutting Length: | - | Cutting Length: | 500mm |
| Tooth Space: | - | Tooth Space: | 16mm |
| Telescopic Range: | 2.28m-2.88m | Telescopic Range: | 1.25m-1.85m |
| Bar Length: | 200mm(8") | Bar Length: | - |
| Net Weight: | 4.3kg | Net Weight: | 3.7kg |
| Gross Weight: | 5.3kg | Gross Weight: | 4.7kg |
| Color Box: | 1210x220x110 mm/pc | Color Box: | 1230x170x170 mm/pc |
| Shipping Box: | 1230x460x240 mm/4pcs | Shipping Box: | 1250x360x360 mm/4pcs |
| 20'GP/40'GP/40'HC: | 792/1676/1860 pcs | 20'GP/40'GP/40'HC: | 672/1416/1652 pcs |
|

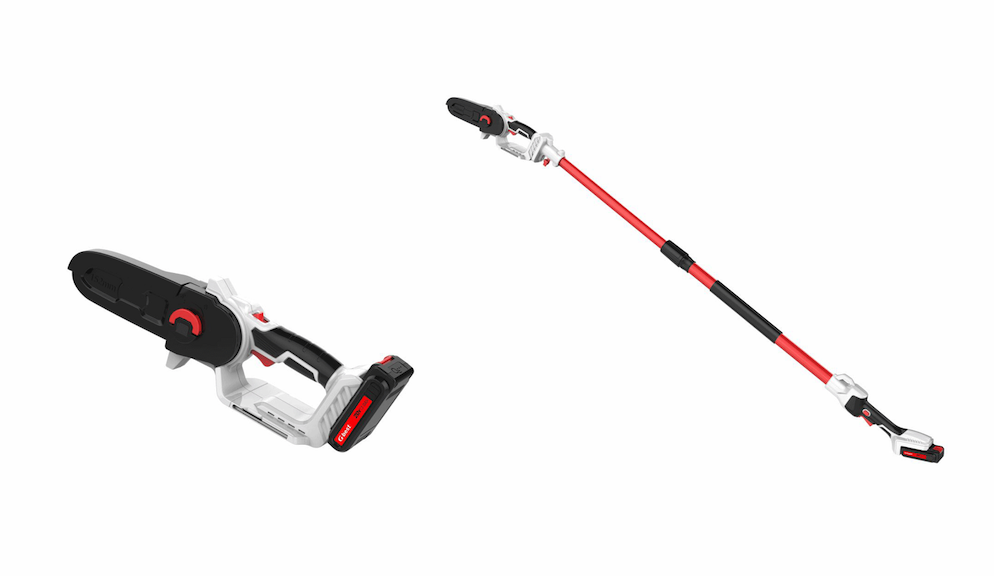

CSB20 | |
CSB20P |
| Power Source: | Lithium-ion | Power Source: | Lithium-ion |
| Battery Voltage: | 20V | Battery Voltage: | 20V |
| Chain Wheel Speed: | 3000rpm | Chain Wheel Speed: | 3000rpm |
| Chain Speed: | 5m/s | Chain Speed: | 5m/s |
| Oil inspection window (v/n) | N | Oil inspection window (v/n) | N |
| Bar Length: | 152mm-6" | Bar Length: | 152mm-6" |
| Max. Cutting Length (in) : | 150mm | Max. Cutting Length (in) : | 150mm |
| Chain Gauge/ Width/Pitch: | 6.35mm - 1/4" | Chain Gauge/ Width/Pitch: | 6.35mm - 1/4" |
| Net Weight: | Net Weight: | ||
| Color Box: | 450X175X145mm/pc | Color Box: | 1220*210*145mm |
| Shipping Box: | 470x330x300mm/4pcs | Shipping Box: | / |
| 20'GP/40'GP/40'HC: | 2476/5124/5944pcs | 20'GP/40'GP/40'HC: | 660/1410/1598pcS |
|
CSA20 | |
HTB20 |
| Power Source: | Lithium-ion | Power Source: | Lithium-ion |
| Battery Voltage: | 20V | Battery Voltage: | 20V |
| Chain Wheel Speed: | 3550rpm | No Load Speed: | 1200rpm |
| Chain Speed: | 6.5m/s | Cutting Length: | 500mm |
| Oil Tank Capacity: | 120ml | Tooth Space: | 16mm or 22mm |
| Bar Length: | 203mm(8")/254mm(10") | Net Weight: | 2.8kg |
| Maximum Cutting Length: | 180mm(8") | Gross Weight: | 4.3kg |
| Net Weight: | 2.1kg (without battery 8"Bar) | Color Box: | 925x180x170 mm |
| 2.3kg (without battery 10"Bar) | Shipping: | 945x380x355 mm/4pcs | |
| Color Box: | 430x240x200 mm/pc | 20'GP/40'GP/40'HC: | 888/1800/2100 pcs |
| 20'GP/40'GP/40'HC: | 1419/2893/3417 pcs |
|

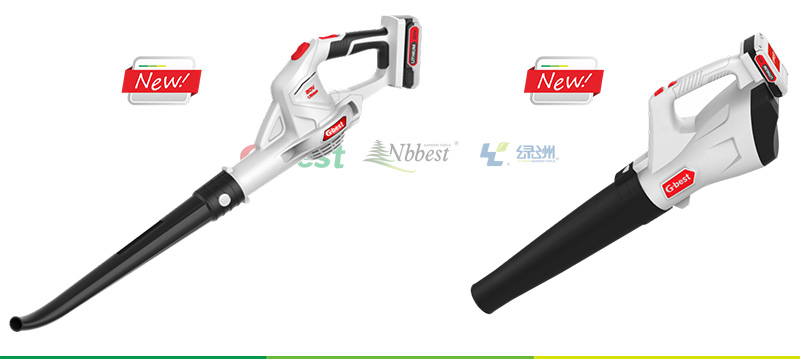

BLB20 | |
BLC20 |
| Power Source: | Lithium-ion | Power Source: | Lithium-ion |
| Battery Voltage: | 20V | Battery Voltage: | 20V |
| No Load Speed: | 11000-12000rpm | No Load Speed: | 8000-13000rpm |
| Max Cfm: | 98CFM | Blow Air Speed: | 72mph(32m/s) |
| Blow Air Speed: | max 130mph | 95mph(42m/s) | |
| Net Weight: | 1.67kg | Wind Volume: | 485/630m³/h (285/372CFM) |
| Gross Weight: | 2.8kg | Tube Size: | One piece tube 0.5m |
| Color Box: | 480x160x190mm | Net Weight: | 2.3kg (without battery) |
| Shipping: | 500x340x210 mm/2pcs | Color Box: | 520x210x335 mm/pc |
| 20'GP/40'GP/40'HC: | 1694/3446/3730 pcs | 20'GP/40'GP/40'HC: | 840/1764/2016 pcs |
|

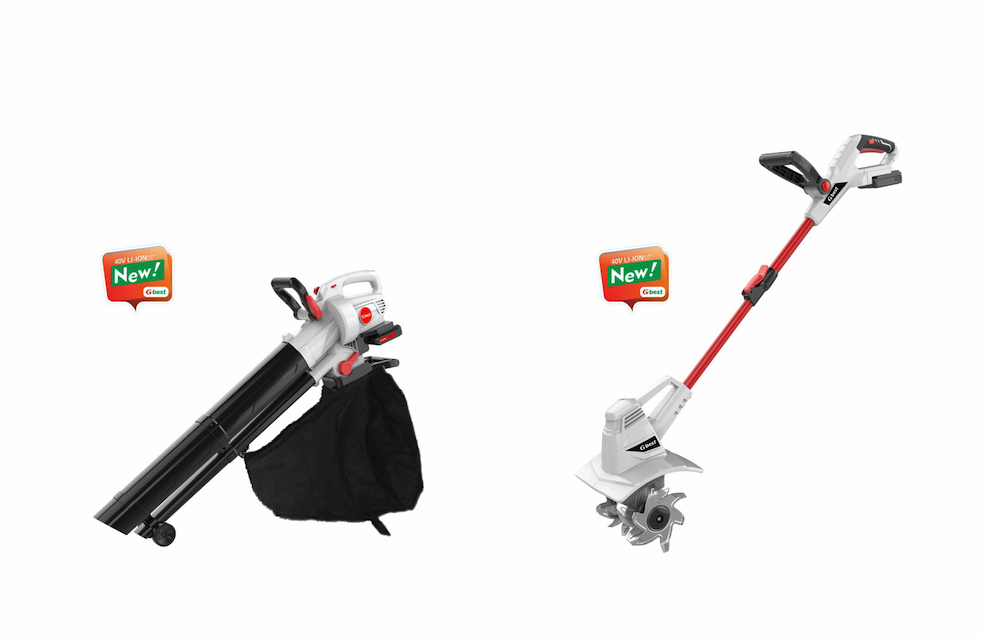

BVB40 | |
TCA20 |
| Power Source: | Lithium-ion | Normal Voltage: | 18V Max |
| Battery Voltage: | 2 x 20V | Battery Voltage: | 20V x 2Ah |
| No Load Speed: | 9500 RPM - 12800RPM | Rated no-load current: | 1.4A |
| Max Air Volume: | 361CFM | Rated no-load Speed: | 170rpm |
| Max Air Speed: | 166MPH | Tilling depth: | 6"tilling depth |
| Mulching ration: | 10:01 | Tilling width: | 7.87"Tilling width |
| Volume of collection bag: | 12L | Working time: | 30mins per charger with 2.0Ah |
| Color Box: | 365*300*470mm/pc | Color Box: | mm/pc |
| Shipping: | / | 20'GP/40'GP/40'HC: | pcs |
| 20'GP/40'GP/40'HC: | 518/1071/1221PCS |
